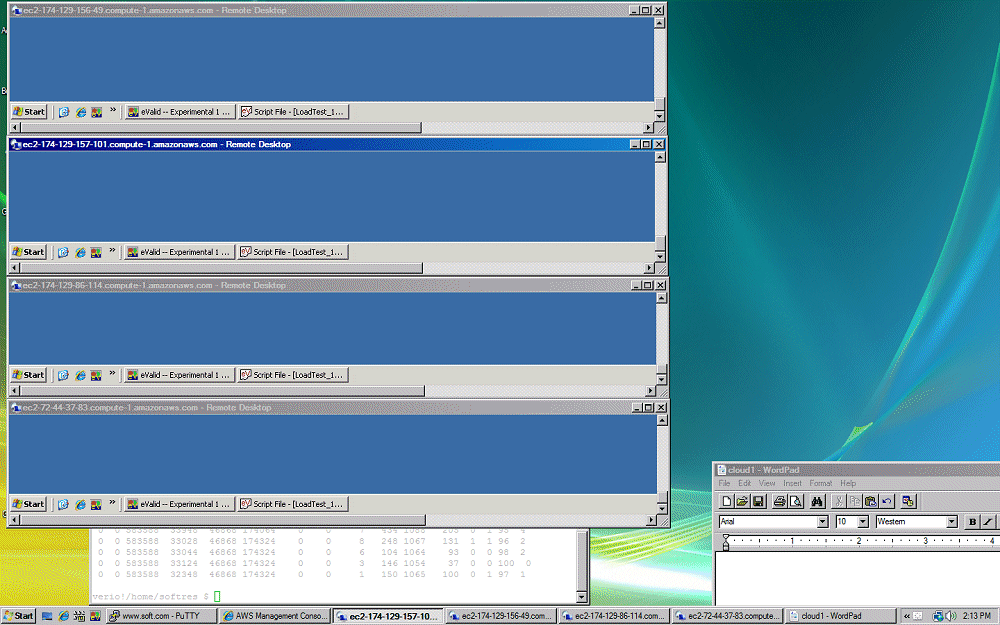

- Cloud #1:
Four instances launched with LoadTest_100.evl (100 x 1 of Test.evs) loaded and ready
to start.
cloud-a.gif —
a.gif LARGE

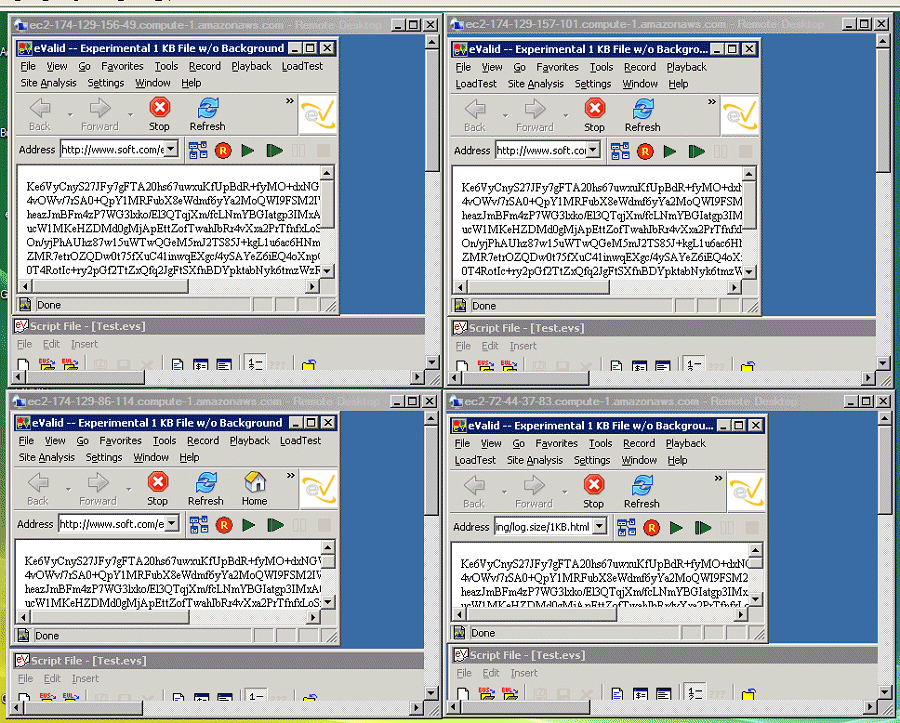

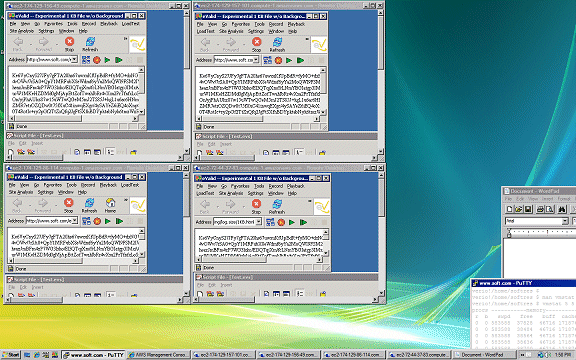

- Cloud #2: Zoom-in view of each instance of a single Test.evs playback.
cloud-b.gif —
b.gif LARGE

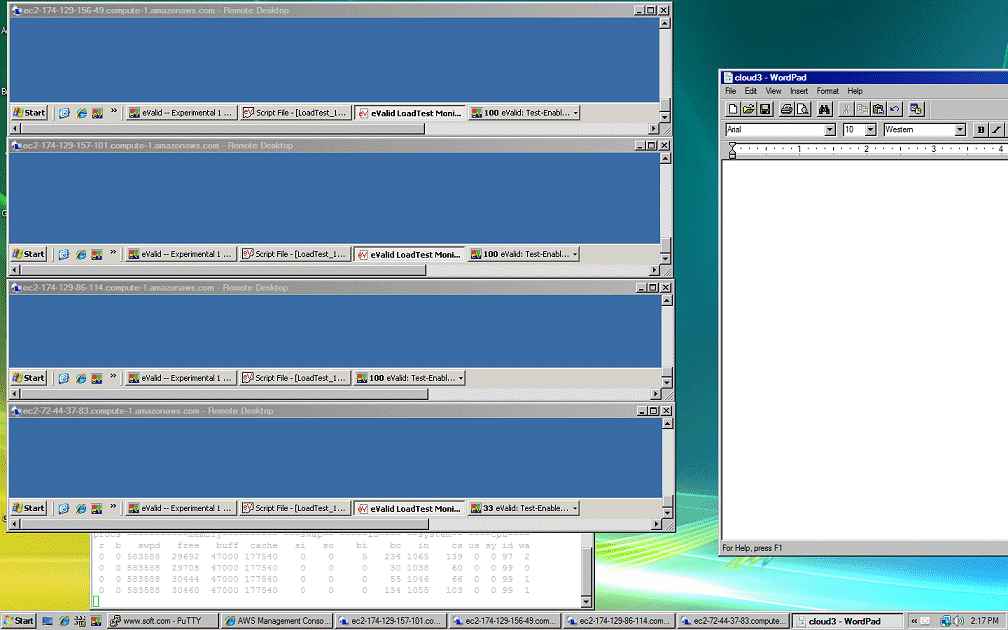

- Cloud #3: Mid-stream status view of LoadTest_100.evl load generation process.
Note that each machine instance reaches 100 eValid browsers, playing back Test.evs in parallel.
cloud-B2.gif —
b2.gif LARGE

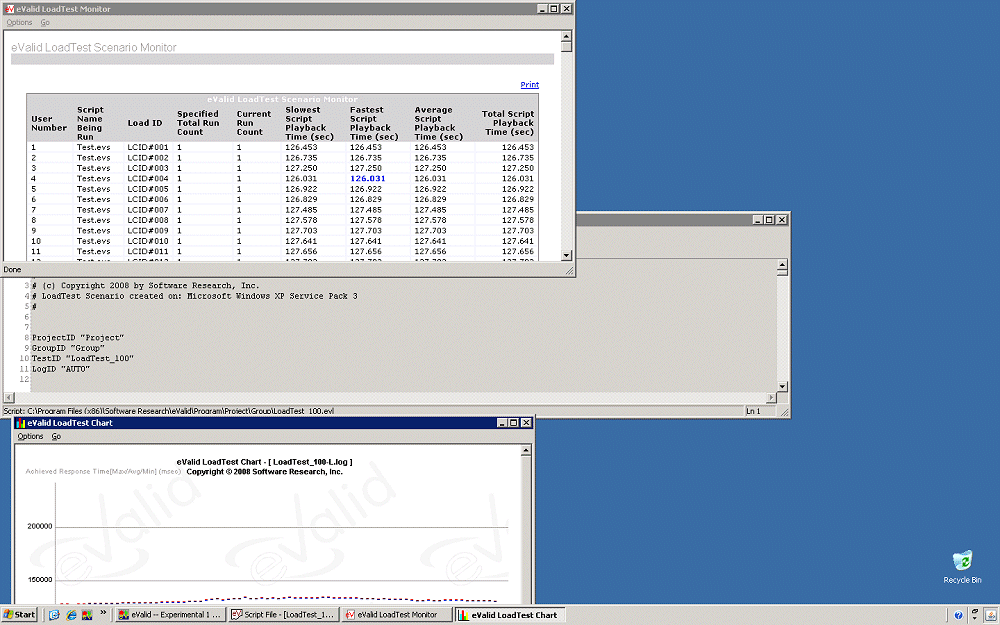

- Cloud #4: End of LoadTest run, LoadTest Scenarior Monitor and LoadTest Chart show
the complete data collected during the run.
cloud-c1.gif —
c1.gif LARGE

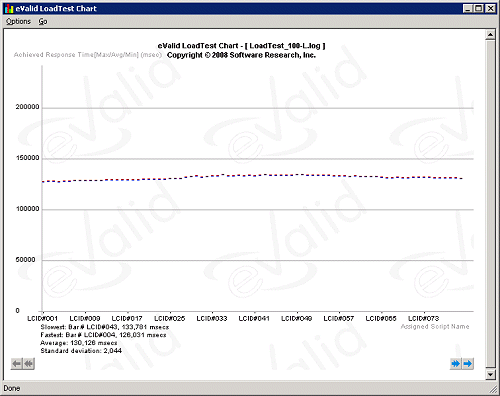

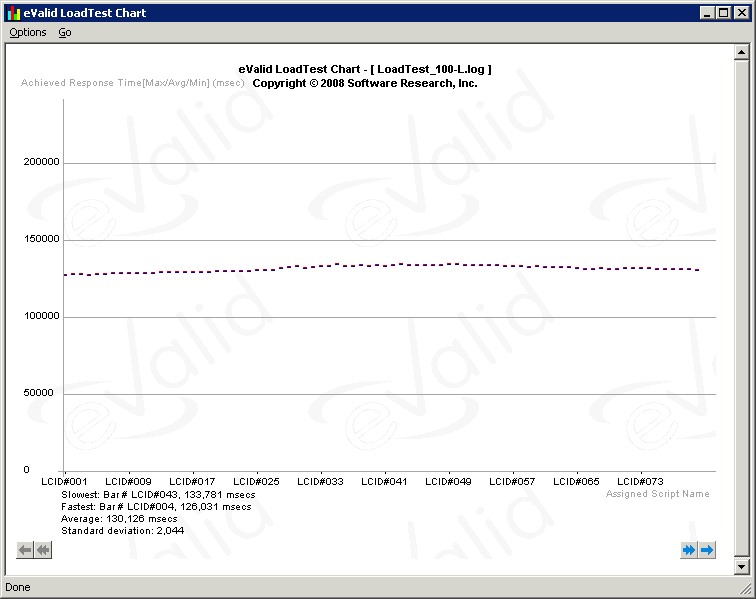

- Cloud #5: Zoom-in view of the LoadTest_100.evl LoadTest Chart which shows the
relative response times of all 100 eValid instances.
cloud-c2.gif —
c2.gif LARGE

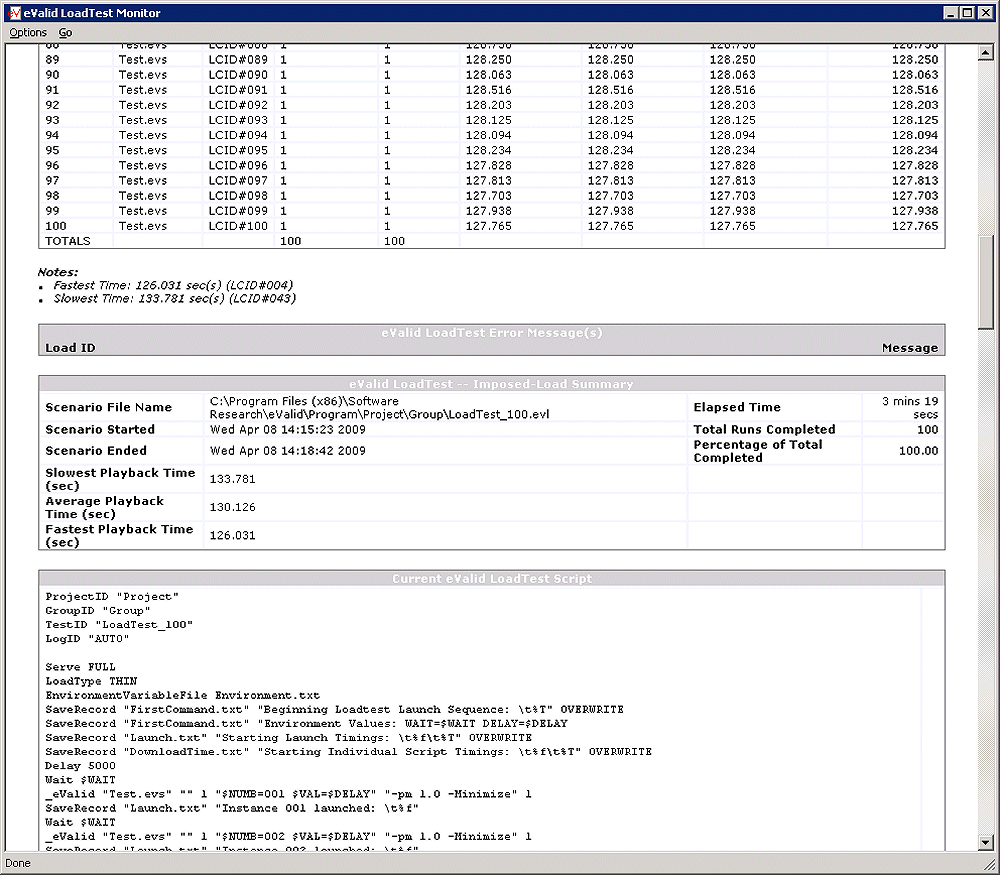

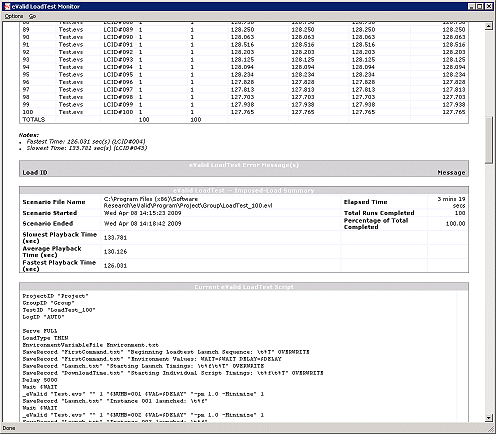

- Cloud #6: Zoom-in view of the Loadtest Monitor summary seciton showing
total number of runs completed, 100/100, along with the fastest and slowest times.
cloud-c3.gif —
c3.gif LARGE

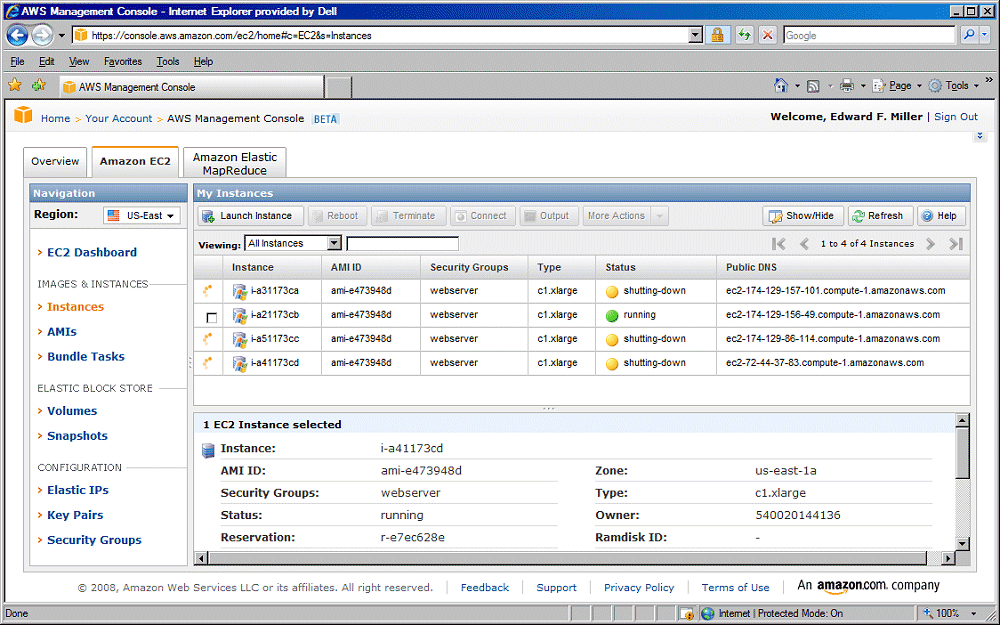

- Cloud #7: A quick view of the Amazon Web Services EC2 Management Console that
is controlling the four machine instances,
used to create the load imposed from a total of 100 x 4 = 400 simultaneous Browser Users.
cloud-d.gif —
d.gif LARGE
